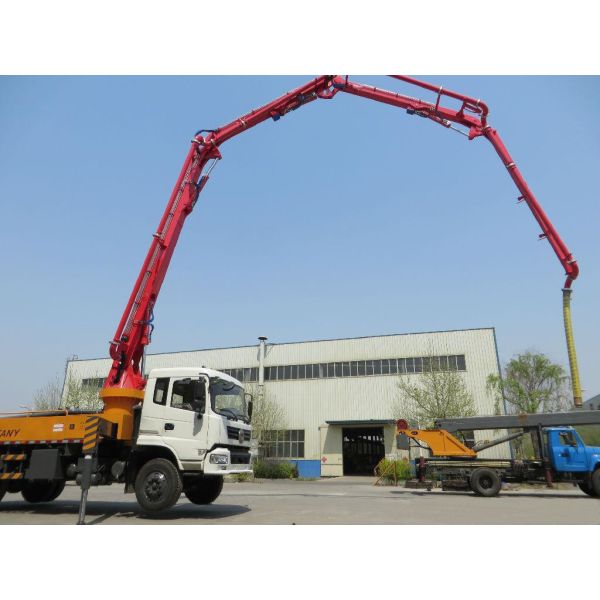

Name: 30m Concrete Pumper Truck Concrete Transport Truck LHD RHD
Brand: Dongfeng
Price: 80000 USD

Brand Name : Dongfeng

Model Number : DFP30

Place of Origin : China

MOQ : 1unit

Price : USD80000-150000/unit

Supply Ability : 1000units per month

Delivery Time : 30 days after receive deposit

Packaging Details : Nude packaging

Product name : 30m Concrete Pump Truck

Color : White, red, or as customer's request

Pump height : 30m

Contact Now

1. Chassis	Chassis	Dongfeng brand
	Emission standard	Euro 3
	Engine	Yuchai
	Engine power/rotation speed	218HP/2000rpm
	Wheelbase	4700
	Maximum driving speed:	80km/h
	Vehicle approach/dispatch angle:	24.6°/15.6°
	Tire specification:	11.00R20 16PR
2. Boom system	Boom maximum vertical height	29.7m
	Rack horizontal feeding radius	15.9m
	Each arm rotation angle	90/180/240/180
	Boom control mode	Load-sensitive proportional control
	Boom folding method	M-type (Four-arm boom)
	Brick tower rotating angle	360°
	Front leg span distance	5840
	Back leg spans distance	5840
	Front and rear leg vertical distance (MM)	6300
	Leg open	X-H
	Rubber hose length	3000mm
	Concrete pipe diameter mm	125

3. Cleaning system	Air pressure or plunger pump
4. Size and weight	Upper structure length/width/height/weight (MM/T)	7650/2350/2550/13.5
	Total vehicle length (MM)	9850
	Total vehicle width (MM)	2350
	Total vehicle height (MM)	3500
	Overall vehicle quality (T)	19.5
5. Pumping system	Concrete distribution valve form	S valve
	Concrete piston brand	Zhonglian/Sany
	Maximum concrete outlet pressure high/low pressure	10.5/8.5
	Theoretical pumping times (times/minutes)	18~26
	Delivery cylinder inner diameter/stroke	230/1450
	Maximum feeding height (MM)	1450
	Hopper volume (L)	650
	Pumpable concrete slump	160-220
	Allowed maximum aggregate size (MM)	40
	Lubrication method	Centralized lubrication
